Reinforcements
Description

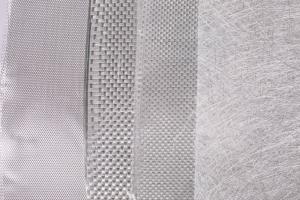

Woven Roving is a bidirectional fabrics made by interweaving direct Roving. It is compatible with unsaturated polyester, vinyl ester and epoxy resins. Woven roving can be used in hand lay-up, and machine production etc. process system.
The typical products are boats, storages tanks, automotive parts, furniture and sports facilities etc. FRP products.
Product Characteristics:
1.Area weight: from 30g/m2 to 800g/m2
2.Maximum width: 3.3meter
3.Few fuzz, soakage, rapid endosmosis
4.Composite with high mechanism strength
5.Tabby fabric, raw edge treatment
6.Moisture content≤0.15
7.Combustible Content: 0.40-0.80%
Specification:
Product Code | Area weight (g/m²) | Width (mm) | Warp density (end/cm) | Weft density (end/cm) |
EW30PA-103P | 25 | 900 | 20 | 18 |
EW50PA-100P | 50 | 1000 | 20 | 20 |
EW100S-100P | 110 | 1000 | 16 | 15 |
EW160S-100P | 160 | 1000 | 12 | 12 |
EW200S-100P | 198 | 1000 | 8 | 7 |
The other specification are according to the customer's requirements.
Packing: Each roll is wound on a cardboard tube and packed with poly bag corrugated carton outside.Carton size: 1300mm x 255mm x 255mm ( for 1270mm width)
