Description

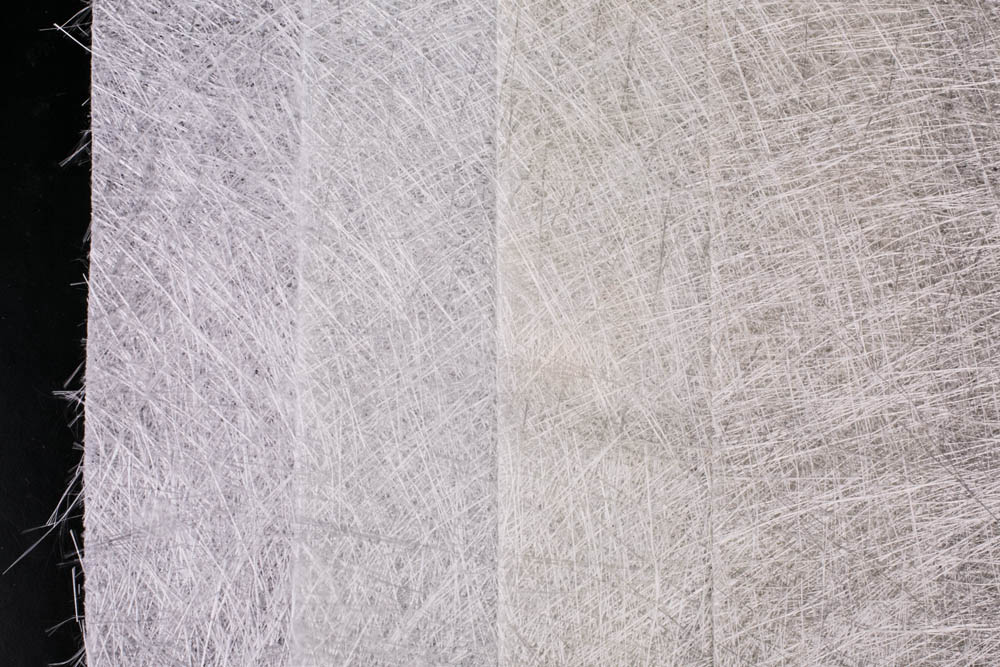

E-glass chopped strand mat is made from fiberglass strands chopped into certain length and bonded together with powder binder or emulsion binder. It is compatible with unsaturated polyester,Vinyly ester and epoxy resins. The chopped strand mat can be used in hand lay-up, filament winding, compression molding etc, process.
The typical end products are laminates, boats, bath equipment, automotive pats and cooling tower etc.

Product characteristics:

1. Type of binder: powder or emulsion.

2. Area weight: from 100g/m2 to 900 g/m2.

3. Max width: 3300mm

4. Good wet-out.

5. Easy to form

6. Very high tensile strength, suitable for filament winding or continuous laminating

7. Even thickness

8. Good resistance to water and chemical agent.


Specification:

Product code

Width(mm)

Area weight (g/m²)

Combustible Content (%)

Breakage Strength(N)

Compatible resin

CSM200

≤3300

200

3.6-6.3

≤60

EP/UP

CSM300

≤3300

300

3.2-5.4

≤90

EP/UP

CSM380

≤3300

380

2.8-4.8

≤100

EP/UP

CSM450

≤3300

450

2.4-4.2

≤120

EP/UP

CSM600

≤3300

600

2.3-3.9

≤150

EP/UP

CSM900

≤3300

900

2.1-3.6

≤180

EP/UP


Packing:

Each roll is wound on a cardboard tube and packed with poly bag, corrugated carton outside.

Carton size:

1300mm x 310mm x 310mm ( for 1270mm width)
